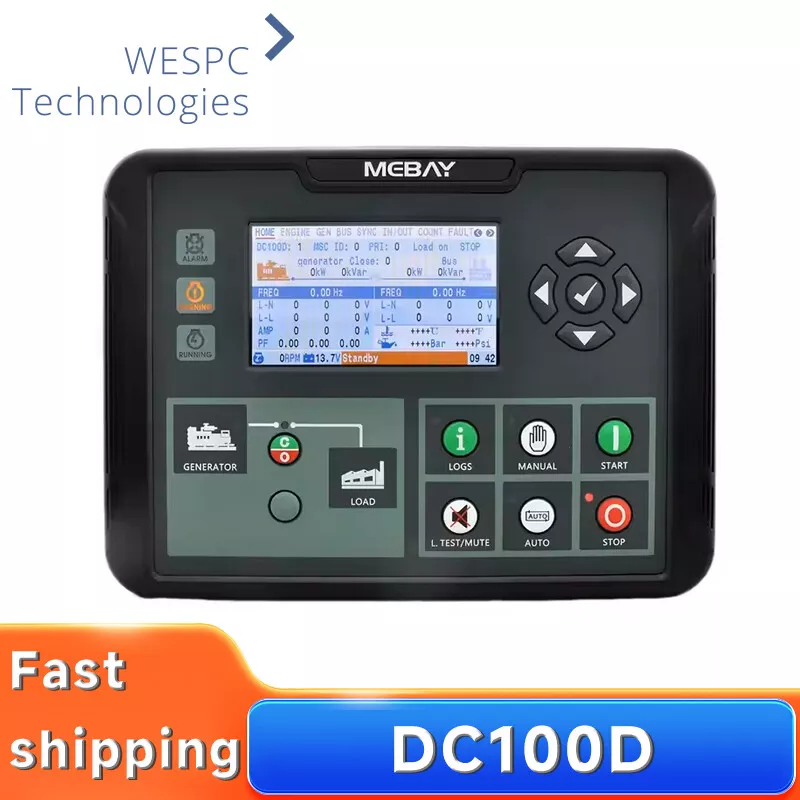

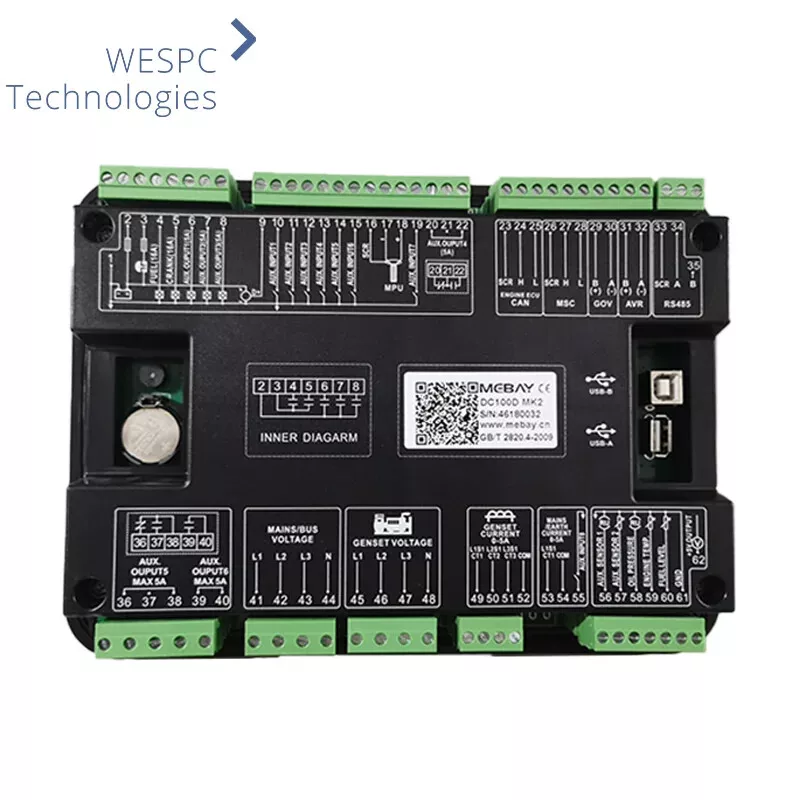

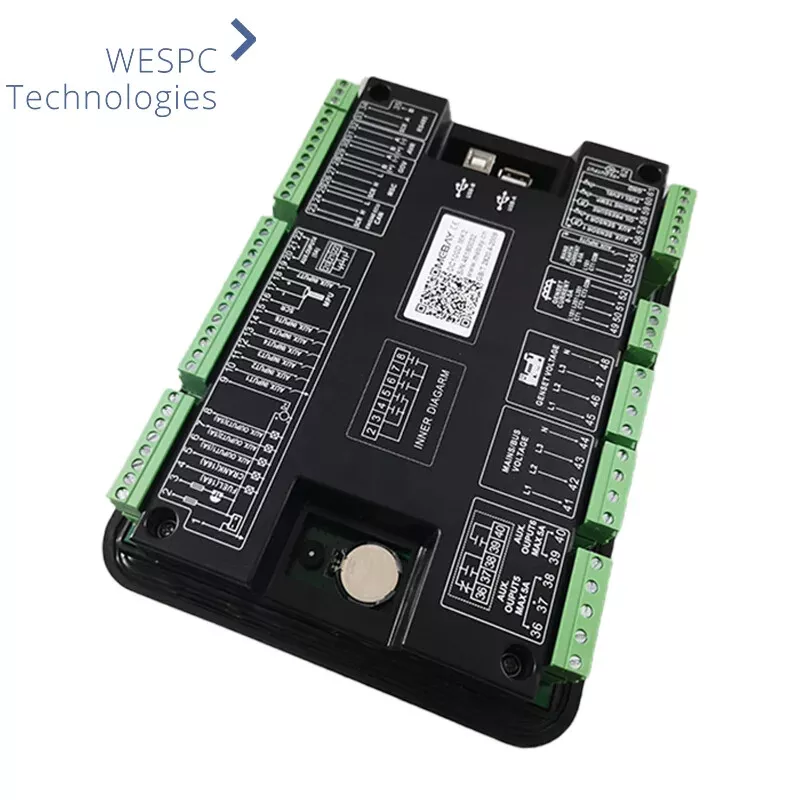

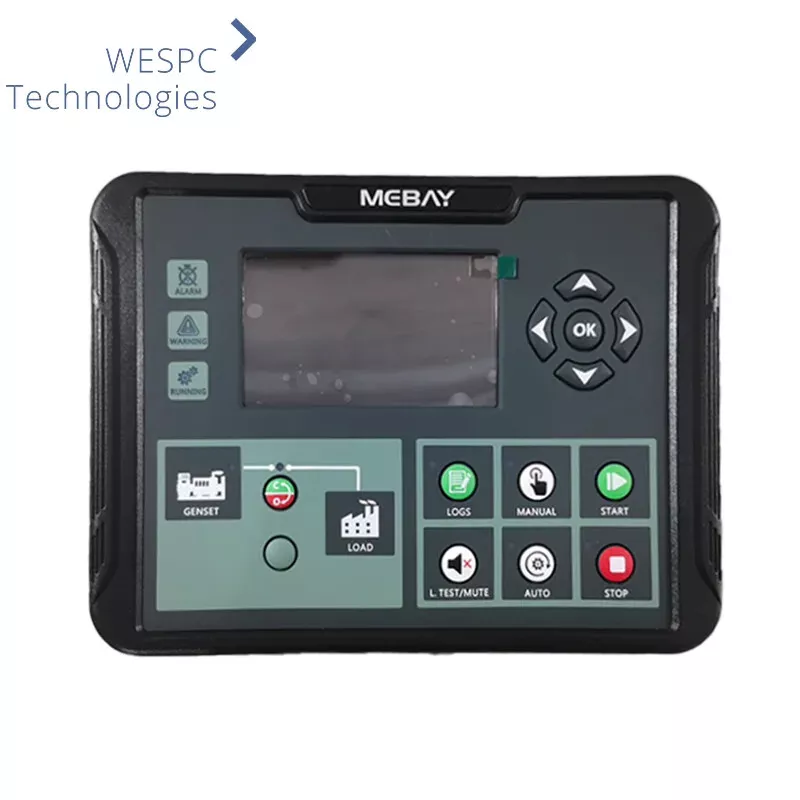

Engine Control Board CAN Mebay DC100D Or...

main feature

Dual-core 32-bit imported high-performance microcontroller control;

4.3-inch TFT color large-screen LCD display, comes with 5 language switches, and the language can be customized according to needs;

The UI interface of pointer instrument and digital display is a new original design that integrates dynamics and precision;

The screen protection is made of hard screen acrylic material, which is wear-resistant and scratch-resistant;

Using silicone panel, it is effectively waterproof, oil-proof and UV-proof, has good operating feel and long service life;

Standard USB interface, through which parameters can be set, real-time monitoring can be performed, and parameters can be set when the controller is powered off;

Equipped with RS485 interface, the “three remote” functions can be realized using MODBUS protocol;

Standard CAN communication interface, built-in J1939 protocol, matched with more than 30 types of EFI engines;

Collect and display a variety of engine and generator parameters;

Input and output port functions and status display are clear at a glance;

The setting interface adopts a multi-level menu-type classification design, which is convenient and fast ,
