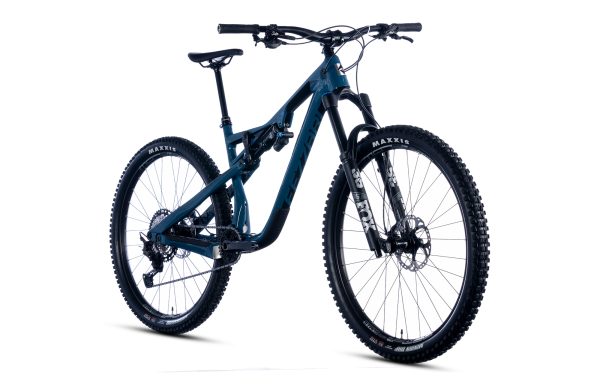

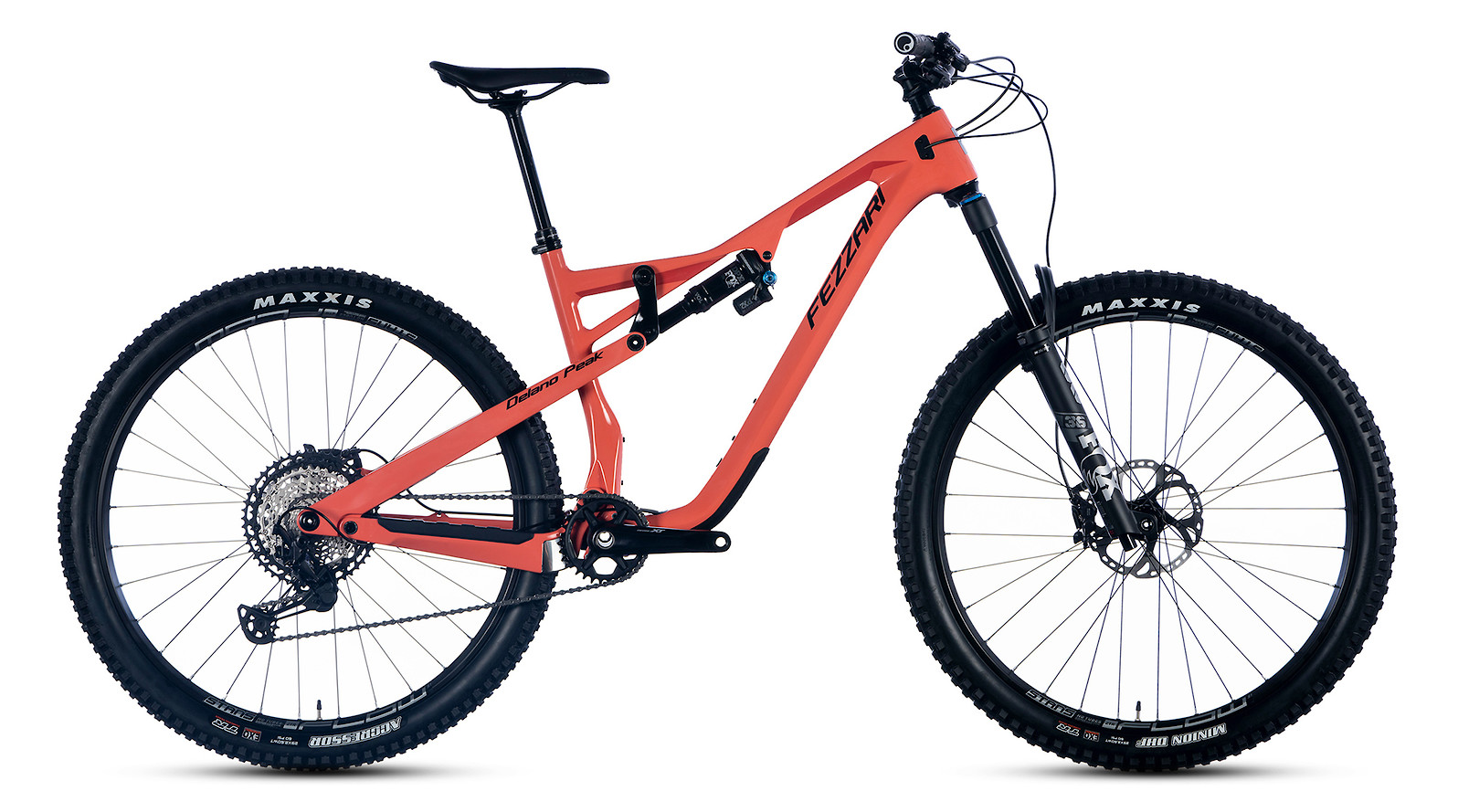

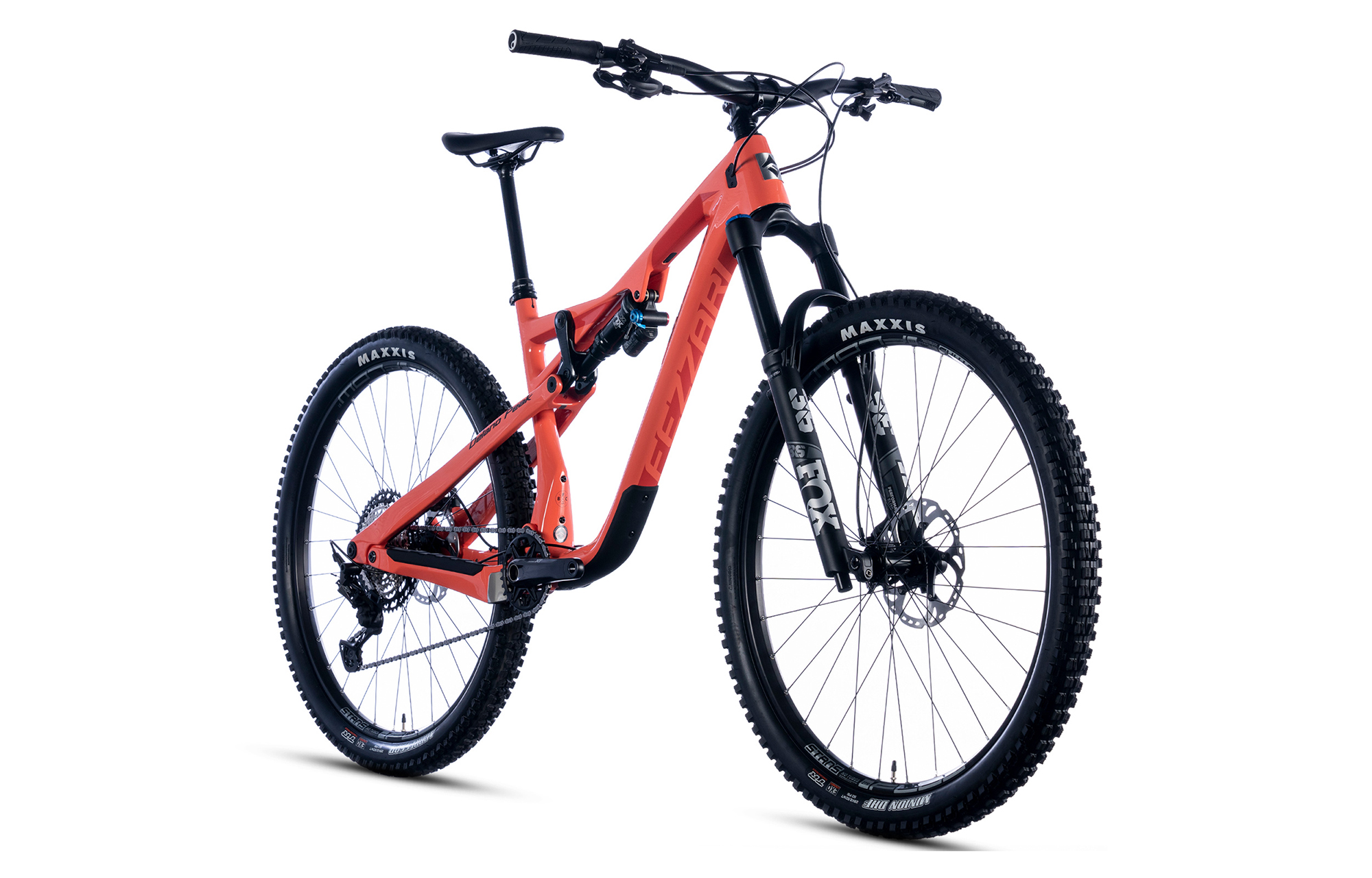

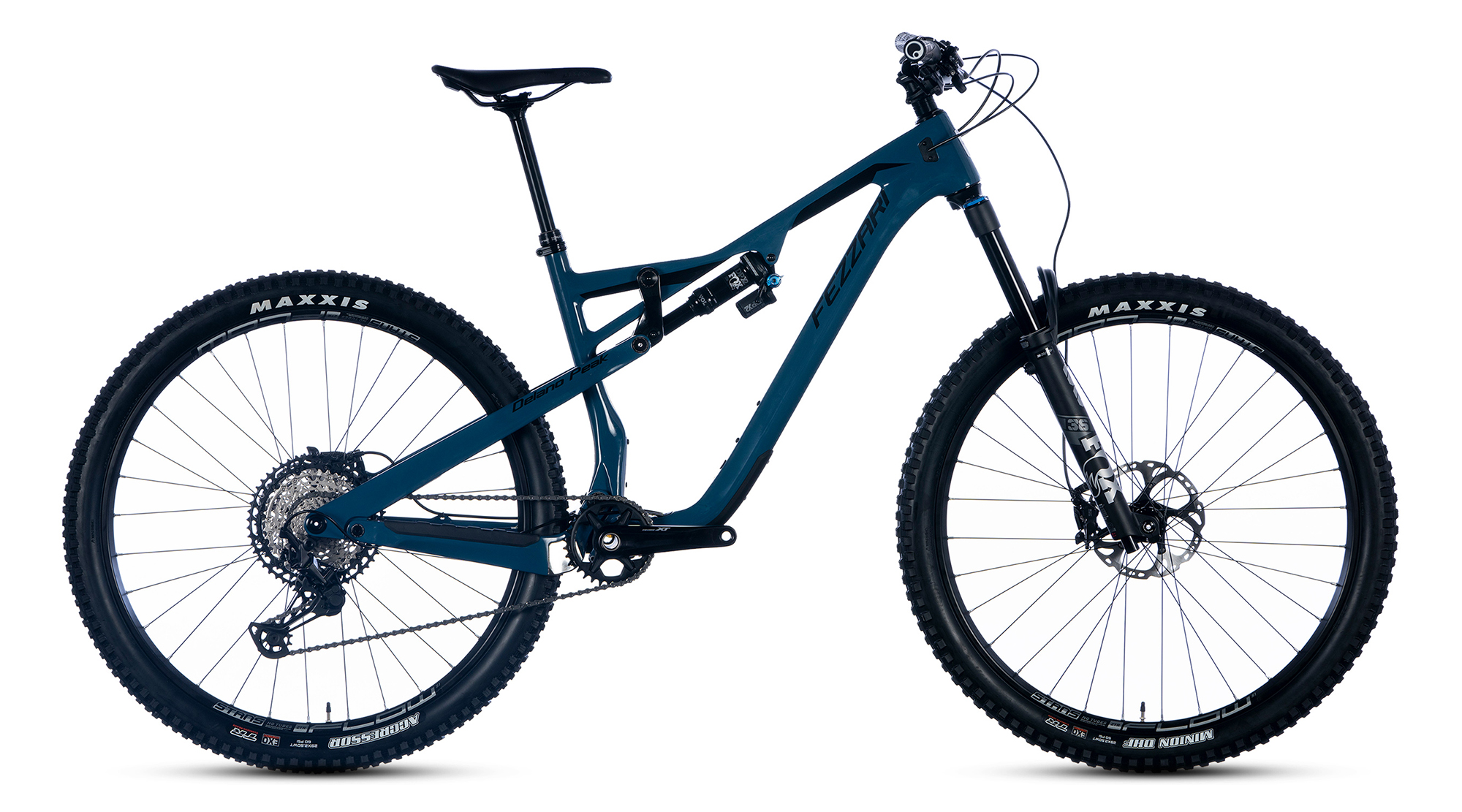

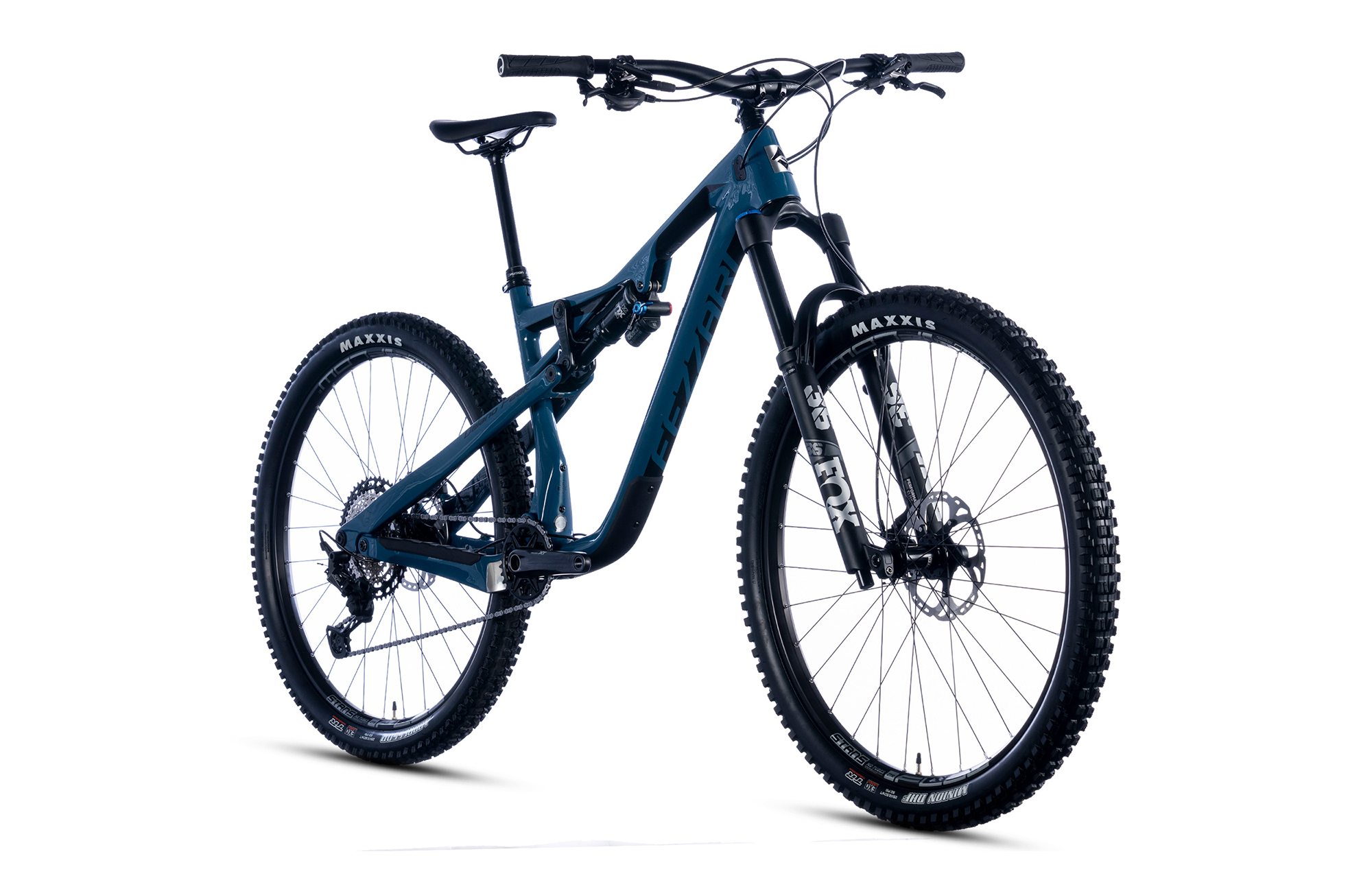

2021 Fezzari Delano Peak Elite Bike
Specifications
Product
Fezzari Delano Peak Elite Bike
Model Year
2021
Riding Type
Trail
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
SM (Low, High)
MD (Low, High)
LG (Low, High)
XL (Low, High)
Wheel Size
29″
Frame Material
Carbon Fiber
Frame Material Details
ST135 CleanCast Carbon, long fiber construction; molded down tube, seatstay, and chainstay protection
Rear Travel
135mm
Rear Shock
FOX FLOAT DPX2 Performance Elite, 3-position compression lever, 210mm x 50mm
Fork
FOX FLOAT 36 Performance Elite, GRIP2 damper, 44mm offset
Fork Travel
150mm
Head Tube Diameter
Tapered, 1.125″ top, 1.5″ bottom
Headset
Cane Creek 40, ZS44/28.6 upper, ZS56/40 lower
Stem
Fezzari FRD Charger35, CNC 6061-T6 alloy, 35mm bar clamp
Grips
Ergon GA-20
Brakes
Shimano Deore XT M8120, 4-piston, Shimano RT86 180mm rotors
Brake Levers
Shimano Deore XT M8100
Drivetrain
1x
Shifters
Shimano SLX M7100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Shimano Deore XT M8100
Chainrings
Shimano Deore XT M8100, 32 tooth
Bottom Bracket
Shimano MT800, 73mm English/BSA threaded
Pedals
None
Chain
Shimano SLX M7100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Rims
Stan’s NoTubes Flow S1, 32 hole
Hubs
Stan’s NoTubes Neo, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes
Sapim Race, alloy nipples
Tires
Front: Maxxis Minion DHF, EXO, TR, 60 TPI, 29″ x 2.5″
Rear: Maxxis Aggressor, EXO, TR, 60 TPI, 29″ x 2.5″
Rear: Maxxis Aggressor, EXO, TR, 60 TPI, 29″ x 2.5″
Saddle
Selle Italia Model X
Seatpost
X-Fusion Manic dropper
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
29″ x 2.6″ or 27.5″ x 2.8″
Bottle Cage Mounts
One (SM) or two (MD/LG/XL) inside front triangle
Colors
Vista Blue, Coral Dune
